HPE (High Pressure Extract System)

Catalogs:


Overview

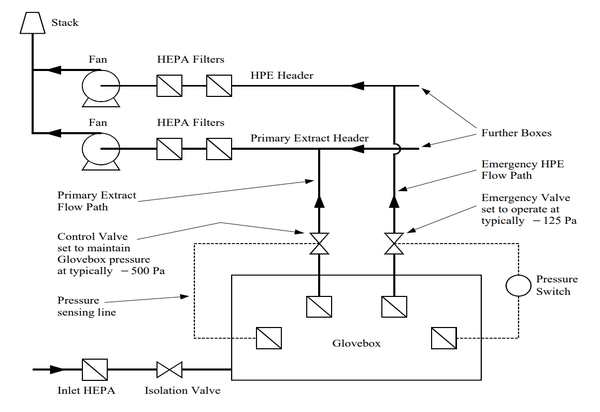

An HPE System requires two separate extract systems; one for normal operations and one for emergency conditions. Normal extract is via a suitably-sized pipe with an extract filter located close to a Glove box boundary. The HPE flows through a larger pipe, sized for the emergency flow, required to maintain Glove box containment. This larger pipe is fitted with an isolation valve that is opened automatically by a pressure switch when the normal operating pressure is exceeded.
