Tokai 1 Remote Dismantling System

Catalogs:


Overview

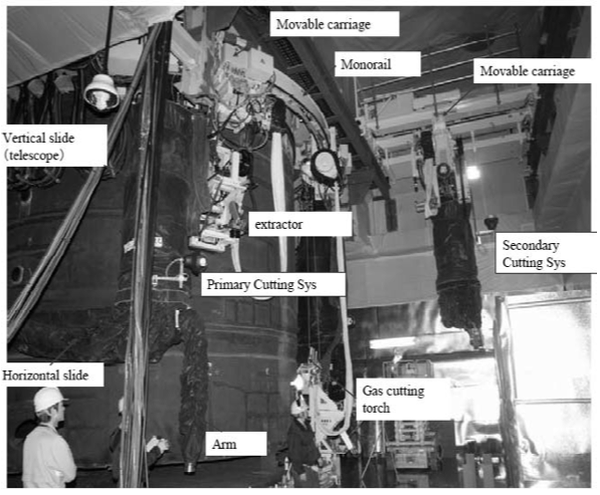

A primary cutting system has been installed on a SRU (Steam Raising Unit) for the remote cutting of the SRU shell and internals. Access to objects, cutting, and transportation are managed by the system. Devices include Monorail and electric carriage, vertical slide machinery, rotating mechanism at the bottom of slide and horizontal slide, manipulator arm, extractor, control system Tools include gas cutting torch , hydraulic pressure disk and electric disk, camera for visual confirmation of internal cutting, power brush, gripper. Secondary cutting system Segmented units cut by the primary cutting device are then cut by the secondary cutting system into sizes that can be put into their transportation cask.
